클램프류

  • 홈 >
  • 제품안내 >
  • 클램프류 >
  • 파이프클램프

경량용 중량용 트윈형 표준형 2 Line 3 Line 4 Line 6 Line Outside Hole 형 Stand 형 부싱 STRAP clamp-B STRAPclamp-A steel clamp U-Band Clamp sliding type for pipe Pliers Clamps

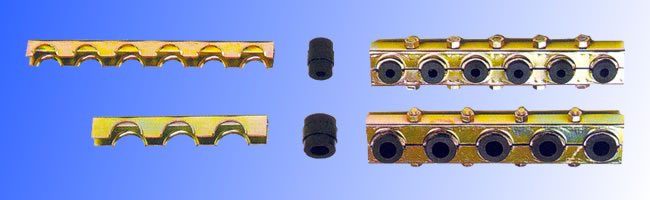

 파이프클램프 > Stand 형





Series Part No. A B C D E F G H I K L
038 MC1-2 3.0(76.2) 2 0.75
(19.05)		 1.5
(38.1)		 1.5
(38.1)		 1.5
(38.1)		 0.75
(19.05)		 0.735
(18.65)		 0.16
(3.97)		 0.34
(8.63)		 0.42
(10.7)R
MC1-3 4.5(114.3) 3
MC1-4 6.0(152.4) 4
MC1-5 7.5(190.5) 5
MC1-6 9(228.6) 6
MC1-7 10.5(266.7) 7
MC1-10 15381) 10
MC1-32 48(1219) 32
050 MC2-2 4.0(101.6) 2 1.0
(245.4)		 2.0
(50.8)		 2.0
(50.8)		 2.0
(50.8)		 1.0
(25.4)		 0.75
(19.05)		 0.16
(4.06)		 0.34
(8.63)		 0.59
(15)R
MC2-3 6.0(152.4) 3
MC2-4 8.0(203.2) 4
MC2-5 10(254) 5
MC2-6 12(304.8) 6
MC2-7 14(355.6) 7
MC2-24 48(1219) 24
075 MC3-2 6.0(152.4) 2 1.5
(38.1)		 3.0
(76.2)		 3.0
(76.2)		 3.0
(76.2)		 1.5
(38.1)		 1.0
(25.4)		 0.25
(6.35)		 0.37
9.4)		 1.06
(27)R
MC3-3 9.0(228.4) 3
MC3-4 12(304.6) 4
MC3-5 15(381) 5
MC3-6 18(457) 6
MC3-16 48(1219) 16
100 MC4-1 6(152.4) 1 3
(76.2)		 5
(127)		 5.5
(139.7)		 5
(127)		 2.5
(63.5)		 1374
(34.9)		 0.562
(14.3)		 0.53
(13.5)		 1.75
(44.45)R
MC4-2 11(279.4) 2
