파이프클램프 > 중량용

재질 :
-Polypropylene PP
-Polyamide PA

구조 :
-Rail type available for all Series.
-Two single clamps for stacking on a weld plate type available for all series.

Accessories Meterial :
-All metal parts available in stainless steel except rail nut.

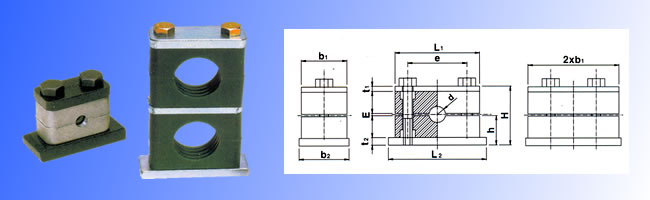

Sprcifications

Part Name		Tubings			Dimensions(mm)									Bolt	Weight ( kg)
Series	Size	A	mm	D(Ø)	L1	b1	t1	L2	b2	t2	h	E	H
H30				6	55	30	8	73	32	9	25	2	49	M10*45	0.3
				8
	01	6	1/8	10.5
				12
	02	8	1/4	13.8
				15
				16
	03	10	3/8	17.3
H40				20	70	30	8	85	32	9	33	2	65	M10*60	0.5
	04	15	1/2	21.7
				25
	06	20	3/4	27.2
		<
