 고압용부속 > 후렌지타입 - 11571

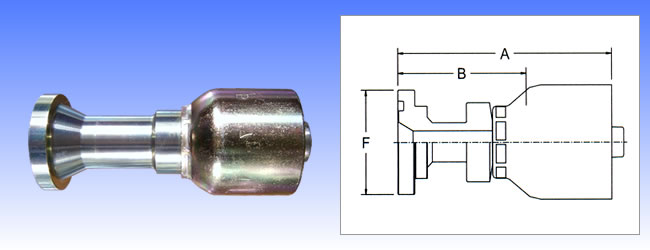

71시리즈-11571 SAE Code 61 Flange Straight
Part NO. FLANGE Size Hose Size A Cut-Off Allowance(B) FLANGE DIA.(F)
inch inch mm inch mm inch mm
11571-12-12 3/4 3/4 3.86 98 2.48 63 1.50 38.10
11571-16-12 1 3/4 3.48 88 2.10 53 1.75 44.45
11571-16-16 1 1 4.32 110 2.55 65 1.75 44.45
11571-20-16 1-1/4 1 4.12 105 2.35 60 2.00 50.80
11571-20-20 1-1/4 1-1/4 4.69 119 3.00 76 2.00 50.80
11571-24-20 1-1/2 1-1/4 4.95 126 3.26 83 2.38 60.33
11571-24-24 1-1/2 1-1/2 5.36 136 3.17 80 2.38 60.33
11571-32-24 2 1-1/2 4.01 102 1.82 46 2.81 71.42
11571-32-32 2 2 5.65 143 3.45 88 2.81 71.42
