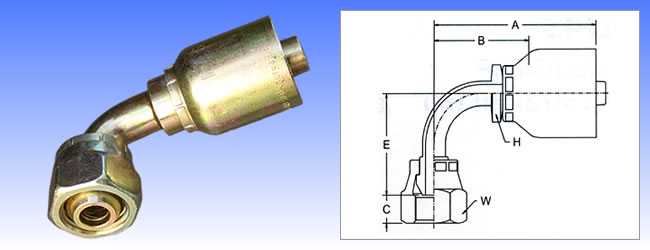

 고압용부속 > #5(PF)90도-1G243





Part NO. Thread Size Hose Size A H Hex(W)
(mm)
Cut-Off Allowance(B) Drop
E
NUT(C)
PF inch inch mm inch mm inch mm inch mm
1G243-04-04 1/4-19 1/4 1.85 47 Ø13.7 19 1.09 28 1.14 29.0 0.24 6.0
1G243-04-04D35 1/4-19 1/4 1.85 47 Ø13.7 19 1.09 28 1.38 35.1 0.24 6.0
1G243-04-06 1/4-19 3/8 2.15 55 Ø18.0 19 1.12 29 1.19 30.2 0.24 6.0
1G243-06-04 3/8-19 1/4 2.05 52 9/16 22 1.29 33 1.31 33.3 0.28 7.0
1G243-06-06 3/8-19 3/8 2.20 56 Ø17.5 22 1.18 30 1.30 33.0 0.28 7.0
1G243-08-06 1/2-14 3/8 2.45 62 Ø21.0 27 1.42 36 1.27 32.3 0.35 9.0
1G243-08-08 1/2-14 1/2 2.71 69 Ø21.0 27 1.45 37 1.27 32.3 0.35 9.0
1G243-08-08D38 1/2-14 1/2 2.71 69 Ø21.0 27 1.45 37 1.50 38.1 0.35 9.0
1G243-12-10 3/4-14 5/8 3.87 98 Ø32.0 36 2.42 62 2.80 71.1 0.39 10.0
1G243-12-12 3/4-14 3/4 3.49 89 Ø28.0 36 2.05 52 2.17 55.1 0.39 10.0
1G243-12-12D70 3/4-14 3/4 3.49 89 Ø28.0 36 2.05 52 2.76 70.1 0.39 10.0
1G243-16-16 1-11 1 4.96 126 Ø36.0 41 3.34 85 2.89 73.5 0.47 12.0
1G243-16-16D130 1-11 1 4.96 126 Ø36.0 41 3.34 85 5.12 130.0 0.47 12.0
1G243-20-20 1-1/4-11 1-1/4 5.47 139 Ø50.0 50 3.78 96 3.75 95.3 0.49 12.5
1G243-20-20D100 1-1/4-11 1-1/4 5.47 139 Ø50.0 50 3.78 96 3.94 100.1 0.49 12.5
1G243-24-24 1-1/2-11 1-1/2 5.90 150 Ø55.0 60 4.53 115 4.92 125.0 0.49 12.5
1G243-32-32 2-11 2 7.11 181 Ø65.0 70 5.33 135 5.16 131.1 0.59 15.0
