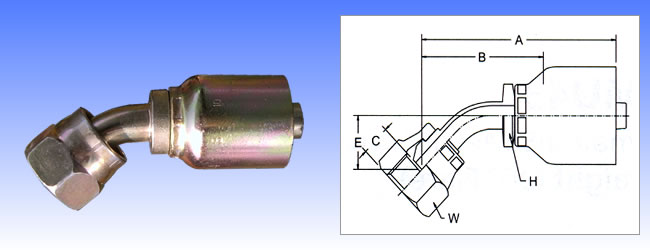

 고압용부속 > #5(PF)45도-1G143





Part NO. Thread Size Hose Size A H Hex(W)
(mm)
Cut-Off Allowance(B) Drop
E
NUT(C)
PF inch inch mm inch mm inch mm inch mm
1G143-04-04 1/4-19 1/4 2.20 56 Ø13.7 19 1.45 37 0.63 16.0 0.24 6.0
1G143-06-06 3/8-19 3/8 2.57 65 Ø17.5 22 1.55 39 0.67 17.0 0.28 7.0
1G143-06-08 3/8-19 1/2 2.85 72 Ø22.0 22 1.59 41 0.69 17.5 0.28 7.0
1G143-08-08 1/2-14 1/2 3.06 78 Ø21.0 27 1.80 46 0.83 21.1 0.35 9.0
1G143-12-12 3/4-14 3/4 3.82 97 Ø28.0 36 2.38 61 1.02 25.9 0.39 10.0
1G143-16-16 1-11 1 5.45 138 Ø36.0 41 3.83 97 1.41 35.8 0.47 12.0
1G143-20-20 1-1/4-11 1-1/4 6.12 155 Ø50.0 50 4.43 113 1.81 46.1 0.49 12.5
1G143-24-24 1-1/2-11 1-1/2 6.49 165 Ø55.0 60 5.12 130 2.22 56.3 0.49 12.5
