  • 파이프클램프
 파이프클램프 > 경량용





재질 :
-Polypropylene PP
-Polyamide PA

구조 :
-Rail type available for all Series.
-Two single clamps for stacking on a weld plate type available for all series.

Accessories Meterial :
-All metal parts available in stainless steel except rail nut.

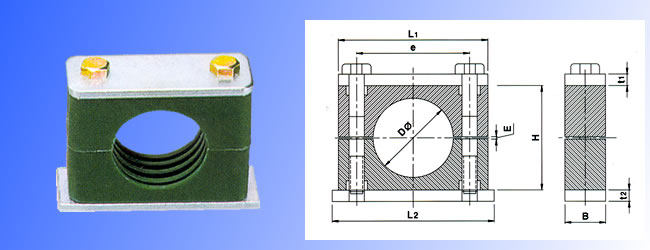

Sprcifications
Series. D(Ø) Dimensions(mm) Bolt kg
A IN mm L1 L2 B t1 t2 E H e
L1     6 40 50 30 4.5 4.5 1.0 30 23 M8*35 0.1
  1/4 6.4
  5/16 8
  3/8 9.5
6   10.5
L2     12 43 53 30 4.5 4.5 1.0 32 26 M8*40 0.12
  1-1/2 12.7
8   13.8
L3     15 48 58 30 4.5 4.5 1.0 36 30 M8*40 0.15
  5/8 16
10   17.3
L4   3/4 20 52 62 30 4.5 4.5 1.5 38 33 M8*45 0.18
15   21.7
  7/8 22
  1 25
L5 20   27.3 58 68 30 4.5 4.5 1.5 42 40 M8*50 0.2
    28
    30
L6 25   34 75 85 30 4.5 4.5 1.5 46 51 M8*55 0.23
    35
L7 32   42.7 83 93 30 4.5 4.5 2.0 60 58 M8*65 0.25
L8 40   48.6 92 102 30 4.5 4.5 2.0 72 67 M8*80 0.33
L9 50   60.5 103 113 30 4.5 4.5 2.0 84 77 M8*90 0.4
L10 65   76.3 130 140 43 9 9 2.0 112 100 M16*130 1.0
